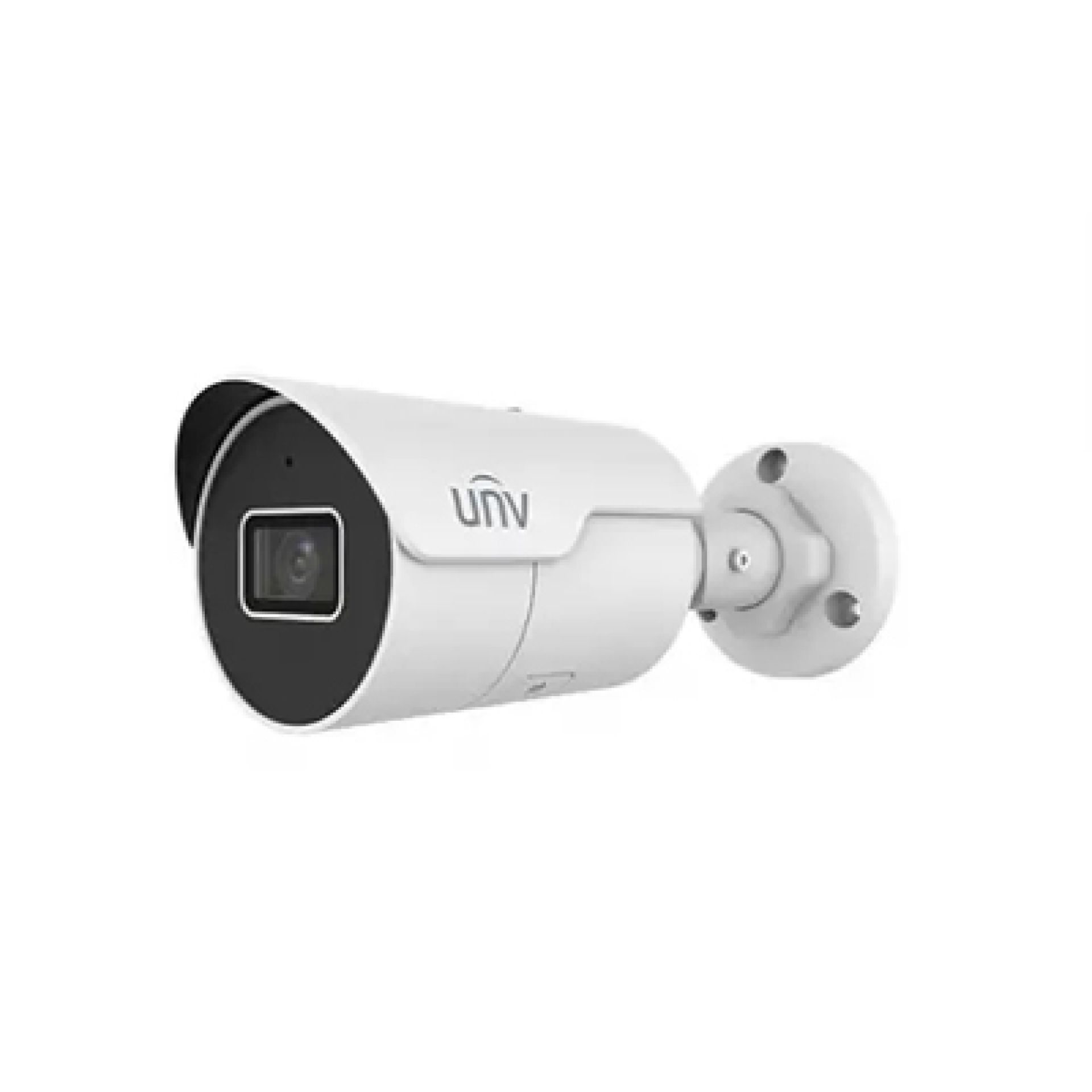

The Uniview IP Network Mini Bullet Camera packs high-resolution imaging in a tiny footprint without sacrificing quality; including built-in smart features and Easystar low-light/IR recording for clear, high-quality 4MP (2688 x 1520) video, day or night. 120 dB WDR also allows for clear recordings even in direct sunlight, avoiding common irritations of compact camera recording quality. IP67 weather rating and graphene/metal construction are ideal for indoor and outdoor installation.

With a roughly 8’’ x 3’’ body and weighing less than a pound, the Uniview Mini Bullet is discrete and lightweight with easy 3-axis tilt for quick install. Powered by PoE or DC 12V (not included). Includes built-in mic and Micro SD card slot (max 512GB).

IPC2124SR-ADF28KM-H Specs and Features

• Max Resolution: 4MP
• Sensor: 1/3.0" CMOS
• Min. Illumination:
  • Colour: 0.003 lux ( F1.6, AGC ON)
  • 0 Lux with IR on
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle:
  • Pan: 0° ~ 360°
  • Tilt: 0° ~ 90°
  • Rotate: 0° ~ 360°
• S/N: >52dB
• WDR: 120dB
• Focal Length: 2.8mm
• Iris Type: Fixed
• Iris: F1.6
• Field of View:
  • Horizontal: 97.0°
  • Vertical: 52.2°
  • Diagonal: 107.5°
• DORI: 63 m, 25.2 m, 12.6 m, 6.3 m (206.7’, 82.7’, 41.3’, 20.7’)
• Supplemental Light: IR
• Illumination Distance(IR): 50 m (164.0 ft)
• Wavelength: 850 nm
• IR On/Off Control: Auto/Manual
• Video Compression: Ultra 265; H.265; H.264; MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
• Video Bit Rate 128 Kbps ~ 6144 Kbps
• U-code: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Dual Streams
• White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Supported
• Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog
• Basic Detection: Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
• General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
• Audio Compression: G.711U; G.711A
• Audio Bitrate: 64 Kbps
• Noise Suppression: Supported
• Sampling Rate: 8KHZ
• Edge Storage: Micro SD, up to 512 GB
• Network Storage: ANR; NAS (NFS)
• Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
• Client: UNV-Link; UNV-Link Pro; EZStation
• Built-in Mic: Yes
• Network: 1 x RJ45 10M/100M Base-TX Ethernet
• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power consumption: Max 5.6W
• Power Interface: Ø 5.5mm coaxial power
• plugDimensions: 190×73×71mm (7.5”×2.9”×2.8”)
• Weight: 0.40kg (0.88lb)
• Material: Graphene + Metal
• Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part 15 B)
• Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529)
