Manufacturer: UNV Uniview

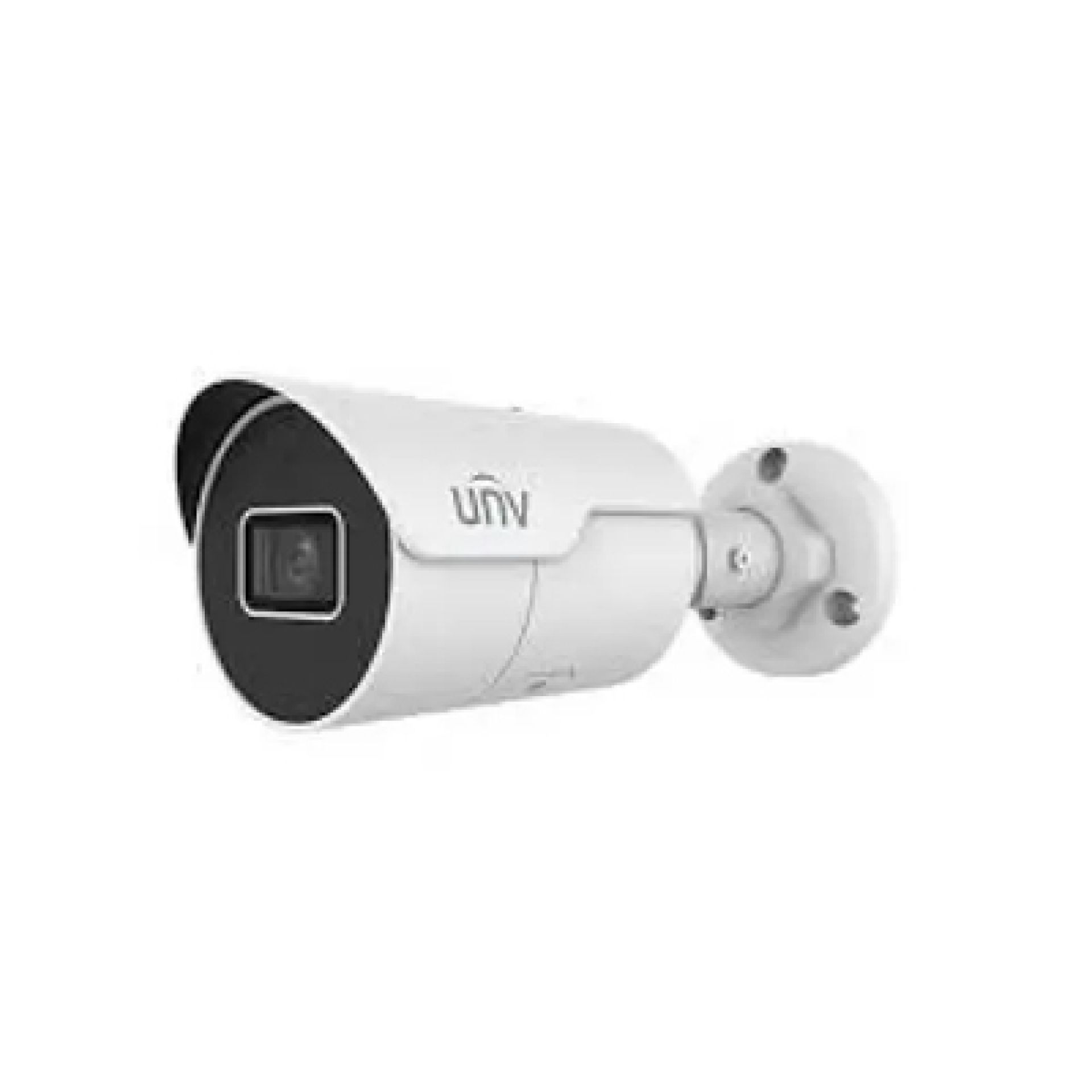

IP Network Mini Bullet Camera 8MP, Smart IR, PoE, IP67, 2.8mm

Quick summary

The Uniview 8MP Mini Network Bullet Camera combines high-end 8MP (2160p 4K) recording and advanced target-based smart detection features in an extremely small package. Built for indoor/outdoor installation with built-in IR recording up to 50 m away from the camera, the Uniview 8MP Mini Network Bullet is powered by PoE or DC 12V (sold separately) and mounts using an easy, 3-axis tilt base for quick install.

With a roughly 8’’ x 3’’ body and weighing less than a pound, the Uniview Mini Bullet is discrete and lightweight solution for low-footprint installs with the same power and resolution as a full-sized camera. Easystar recording maintains high-quality video in low-light, while 120 dB WDR also allows for clear recordings even in direct sunlight, avoiding common irritations of compact camera recording quality.

Includes built-in mic, smart IR and smart features like audio and motion detection and intrusion/line cross detection (based on human body detection).

IPC2128SR-ADF28KM-H Specs and Features

  • Max Resolution: 8MP
  • Sensor: 1/2.8" CMOS
  • Min. Illumination:
    • Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON)
    • 0 Lux with IR on
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Adjustment Angle:
    • Pan: 0° ~ 360°
    • Tilt: 0° ~ 90°
    • Rotate: 0° ~ 360°
  • S/N: >52dB
  • WDR: 120dB
  • Focal Length: 2.8 mm
  • Iris Type: Fixed
  • Iris: F1.6
  • Field of View:
    • Horizontal: 98.7°
    • Vertical: 53.9°
    • Diagonal: 103.6°
  • DORI Distance: 86.9m, 34.8 m, 17.4 m, 8.7 m (285.1’, 114’, 57’, 28.5’)
  • Supplemental Light: IR
  • Illumination Distance(IR): 50 m (164.0 ft)
  • Wavelength: 850 nm
  • IR On/Off Control: Auto/Manual
  • Video Compression Ultra 265; H.265; H.264; MJPEG
  • H.264 Code Profile: Baseline profile, Main profile, High profile
  • Frame Rate:
    • Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
    • Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
  • Video Bit Rate: 128 Kbps ~ 16 Mbps
  • U-code: Supported
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 8 areas
  • Video Stream: Dual Streams
  • White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
  • Digital Noise Reduction: 2D/3D DNR
  • Smart IR: Supported
  • Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
  • HLC: Supported
  • BLC: Supported
  • Defog: Digital Defog
  • Basic Detection: Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body
  • Detection)General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
  • Audio Compression: G.711U; G.711A
  • Audio Bitrate: 64 Kbps
  • Suppression: Supported
  • Sampling Rate: 8KHZ
  • Edge Storage: Micro SD, up to 512 GB
  • Network Storage: ANR; NAS (NFS)
  • Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; 802.1x; SNMPC
  • ompatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
  • Security: Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
  • Client: UNV-Link; UNV-Link Pro; EZStation
  • Built-in Mic: Yes
  • Network: 1x RJ45 10M/100M Base-TX
  • EthernetPower: DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 6.9W
  • Power Interface: Ø 5.5mm coaxial power plug
  • Dimensions: 190×73×71mm
  • (7.5”×2.9”×2.8”)Weight: 0.40kg (0.88lb)M
  • aterial: Graphene + Metal
  • Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
  • EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
  • Safety: CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
  • Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
  • Protection: IP67 (IEC 60529)
